Switch Shader

The Crowd Switch Shaders for Renderman Studio are two Renderman Studio shaders (one for REYES and one for RIS) which can be used to add some visual diversity to the rendered crowd. It lets you vary the texture/shader which will be applied on the same mesh on different Entities. This shader consists of several inputs for available textures/shaders and a selector determining the input to choose as output color.
Crowd Switch Shader used in the tshirt shading graph of a crowd

Creation

To create a Crowd Switch Shader for Renderman Studio, the Renderman Studio plugin (Renderman_for_Maya) must be loaded.

For REYES:

  • Hypershade: RenderMan/REYES / Utilities / CrowdSwitchShaderRMS
  • MEL command: createNode CrowdSwitchShaderRMS;

For RIS:

  • Hypershade: RenderMan/RIS / Utilities / glmCrowdRMS_RIS_SwitchShader
  • MEL command: createNode glmCrowdRMS_RIS_SwitchShader;

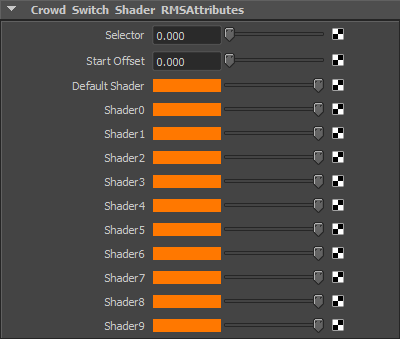

Configuration

Selector Value determining which input will be used. It is usually linked to a value which changes for each character (e.g. GetUserData), hence creating the diversity
Start Offset Value substracted from the selector value when choosing the shader. It is used to create chains of Switch Shaders when more than 10 inputs are needed
Default Shader Default shader to use if no shader corresponds to the Selector value
Shader 0 to 9

Input shaders/textures slots corresponding to the Selector value (e.g. if Selector value is 0, Shader 0 will be returned as output)

Shading Graph Integration

See a step by step tutorial here

This shader can be used to feed a color attribute of any other shader. The output attribute of this shader is called outValue.

In the following example the Crowd Switch Shader has 3 textures connected to its 3 first Shader slots. Its Selector value is fed by a GetUserData shader and its output is connected to the Color attribute of a Blinn Tshirt shader.

At render time, Entities having this Blinn Tshirt shader listed in their Assets and a correctly defined Shader Attribute, you get the following result:
